View F170
View F370
View F190CR
View F370CR

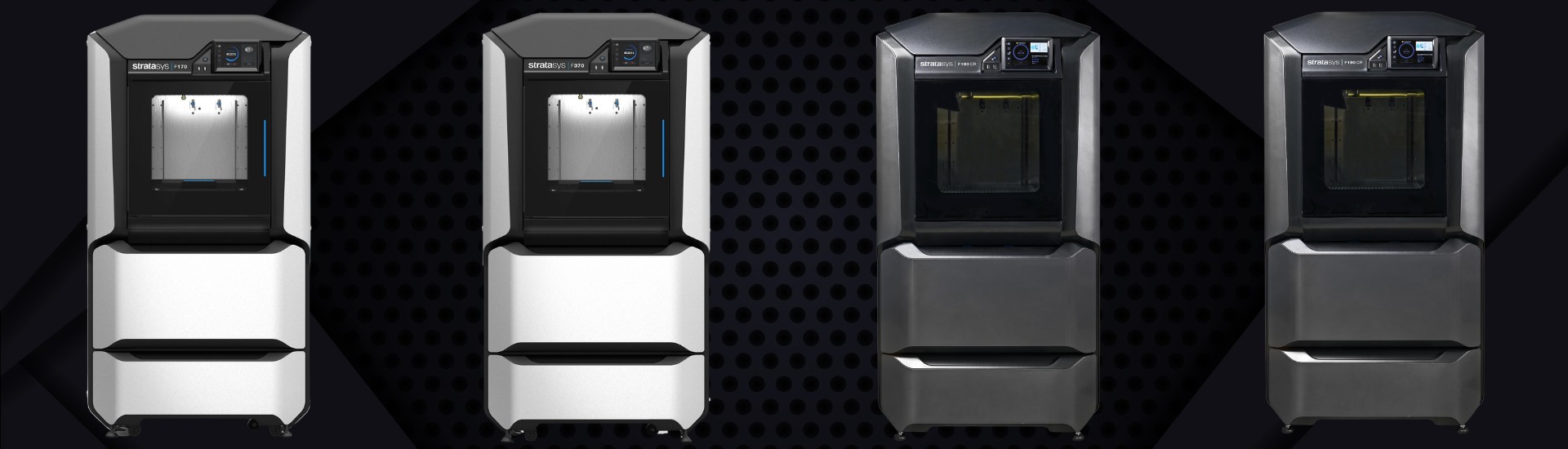

The Stratasys F170, F370, F190CR and F370CR printers integrate cutting-edge technology to deliver precise and reliable prototypes directly from your CAD designs. Leveraging Stratasys’ advanced Fused Deposition Modelling (FDM) technology, these printers create prototype parts including intricate internal features, ideal for field testing form, fit and function.
Sealed filament bays reduce material moisture exposure to maintain stable material mechanical properties. A fully heated build chamber enables higher strength between layers than other printers in this class that use only a heated build platen.

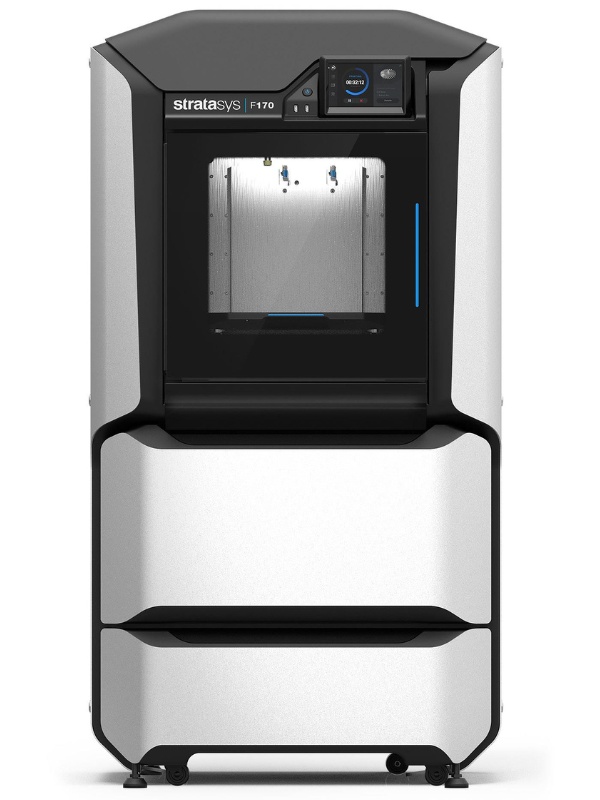

F170
Reliable, Affordable, Productive Rapid Prototyping and Manufacturing
F170, 3D Printers give designers, industrial-grade 3D Printing and enable working faster, through concept iterations and component verification. Make Jigs, Fixtures and Manufacturing Tools faster, with stiff materials.
Increase productivity and reach your goals sooner with repeatable results, using the F170 3D Printer, designed for supreme ease of use, using a wide range of Engineering High-Grade Thermoplastic material.
Achieve complex geometries and interlocking components with Stratasys patented Soluble Support Material. However intricate the part, the Soluble Support dissolves, to leave a pristine finish, requiring no hands-on removal.
- Materials : ASA, ABS-M30, ABS-CF10, TPU92A, QSR Support
- Build Area ; 254x254x254mm (10x10x10 inches)
- Material Bays: 2 Material Bays: 1 Model / 1 Support

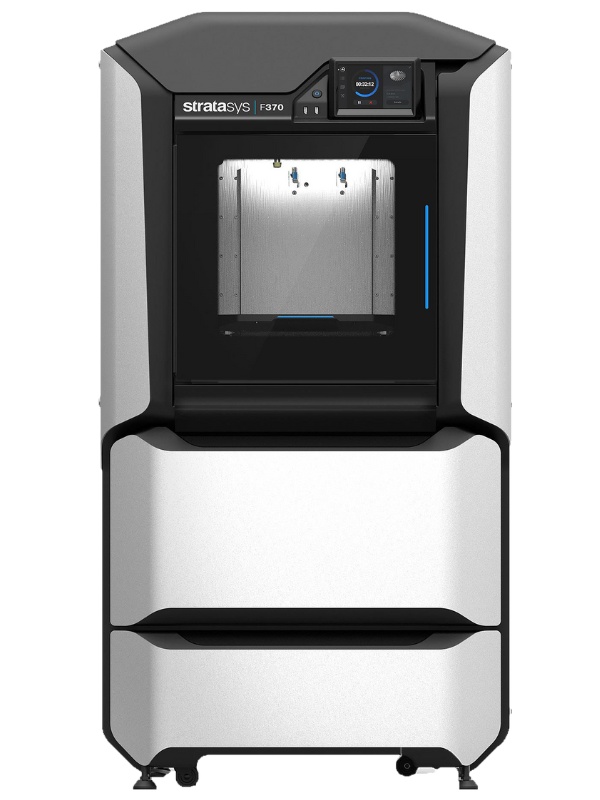

F370
Reliable. Repeatable. Exceptional.
Smoother workflow. Greater accuracy.
F370 3D Printers are designed for supreme ease of use and a more streamlined workflow, operating seamlessly with GrabCAD Print™ software. For users who want deeper control of print options, Insight™ advanced slicing software, is also included. Execute complete control over native features such as surfaces, holes and bodies. Enables applying varying levels of strength to different regions of the file, resulting in optimized FDM parts.
Work with a wide range of High Grade Engineering Thermoplastic Materials, including, ASA, ABS –M30, PC-ABS, ABS-CF10, Diran 410MF07, and TPU 92A.
- Build Area : 355x254x355mm (14x10x14 inches)
- Material Bays: 4 Material Bays: 2 Model / 2 Support
Stratasys patented QSR Soluble Support Material allows for the most complex geometries and interlocking models and freedom of design. The Soluble Support dissolves, leaving a pristine finish, requiring no hands-on removal.

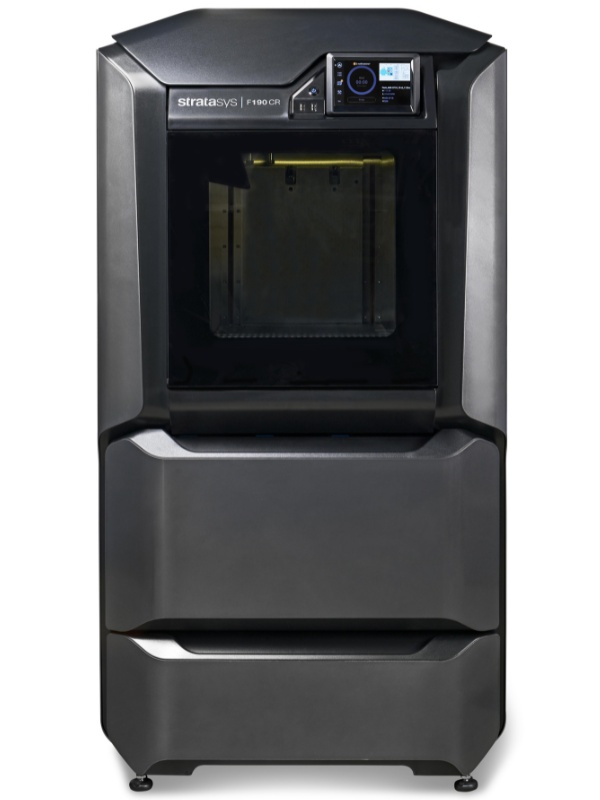

F190CR (Composite Ready)
Augment Machining with Composite 3D Printing with F190 CR FDM Composite Printer.
F190CR Printers, supplement traditional fabrication technologies, allowing manufacturers to replace metal components with high-strength 3D printed composite parts, accelerating thoughput while avoiding the opportunity cost of using production resources or the lead time of outsourcing.
The F190CR uses ABS-CF10 and FDM Nylon-CF10 composite materials, both reinforced with chopped carbon fiber, 10% by weight for strength and stiffness.
- Materials : ASA, ABS-M30, TPU92A, ABS-CF10, Nylon-CF10, QSR Support
- Build Area : 305x254x305mm (12x10x12 inches)
- Material Bays: 2 Material Bays: 1 Model / 1 Support
Stratasys patented QSR Soluble Support Material allows for the most detailed and complex models and freedom of design, that cannot be made with conventional machining or other 3D Printers that don’t have this capability. Up to four-layer resolutions give you flexibility on part quality and print speed. Variable part density gives you the freedom to make fully dense, solid parts or adjust the infill to save weight and material use.
Build-in durability starts with hardened components and print heads to ensure longevity using abrasive composite materials.

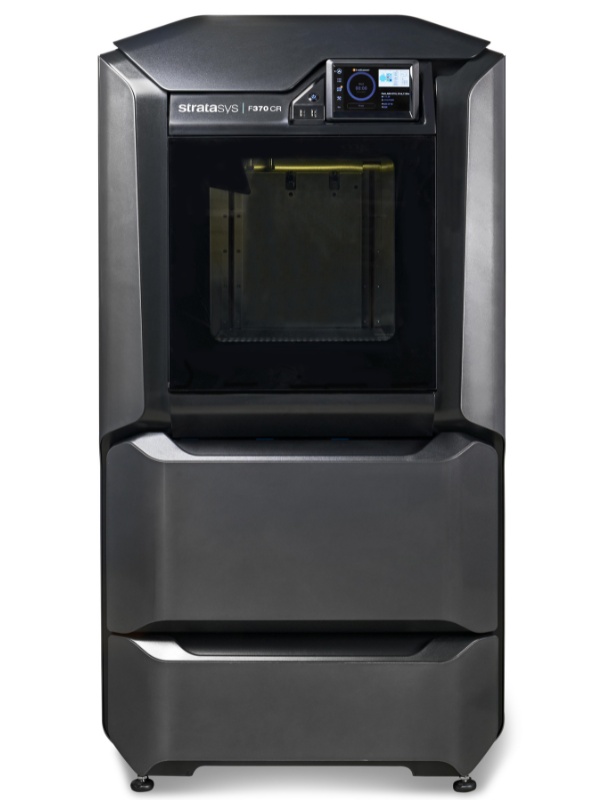

F370CR (Composite Ready)
Supplement your Fixture and Part Fabrication with F370CR.
The F370CR 3D Printers use ABS-CF10 and Nylon-CF10 composite materials, both reinforced with chopped carbon fiber, 10% by weight for strength and stiffness, with hardened components and print heads to ensure longevity using abrasive composite materials.
F370CR 3D Printers are designed for supreme ease of use and a more streamlined workflow, operating seamlessly with GrabCAD Print™ software. For users who want deeper control of print options, Insight™ advanced slicing software is also included.
MTConnect capabilities make it easy to integrate the F370CR printer into a connected factory floor. This industry-standard communication API lets you collect, analyze and display machine data in a useful way.
F370CR 3D Printers also offers application versatility by operating with a range of engineering thermoplastic materials. In addition to high-strength composites, ABS-CF 10 and Nylon-CF10, F370CR printers give you the flexibility to print with other engineering thermoplastics to cover more use cases. This multi-material capability offers the convenience of printing different jobs in different materials. There’s no need to separate printers dedicated to composite and non-composite materials.
Keep your options open. With an F370CR printer, you buy one printer but get the versatility of multiple materials including Stratasys patented Soluble Support, which offers the freedom to print any geometry without restriction.
- Materials : ASA, ABS-M30, TPU92A, PC-ABS, Diran 410MF07, ABS-CF10, Nylon-CF10, QSR Support, SUP4000B Breakaway Support
- Build Area : 355x254x355mm (14x10x14 inches)
- Material Bays: 4 Material Bays: 2 Model / 2 Support
